Deskripsi
compressor salah satu produk Alat yang secara umum berfungsi untuk mengubah listrik menjadi suatu energi potensial didalam suatu tabung udara.

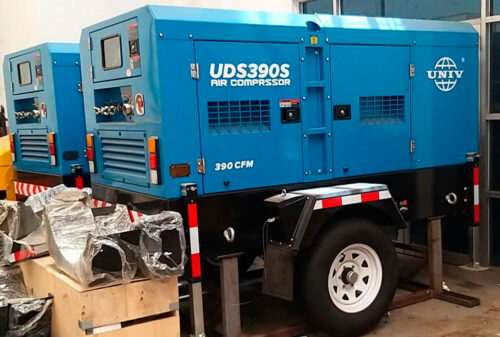

Kompresor Screw 390 CFM Univ UDS 390 S
DATA SPESIFIKASI KOMPRESOR ANGIN UNIV UDS 390 S
| TYPE | Rotary Twin Screw |
| FREE AIR DELIVERY | 11 m3/min / kpa : 390 fcm |
| RATED OPERATING PRESSURE | 8 Kg/cm2 (kpa) |
| RECEIVER TANK CAPACITY | 0.1 m3 |
| AIR OUTLET | X 4 PCS |
ENGINE MODEL & TECHNICAL DATA
- ENGINE : Water Cooled, 4 Stroke
- MODEL : FAW 4DF2-14GG2-YM10W
- CYLINDERS : 4
- BORE X STROKE : 110 X 125 mm
- INTAKE METHOD : Turbo Charged
- DISPLACEMENT : 4,75 L
- FUEL COMSUMPTION : 15.5 Liter / Hour
- COOLING STARTING METHOD : Electric Start
DIMENSION AND WEIGHT
-
- NET WEIGHT : 1.750 Kg
- PACKING SIZE : (L x W x H) : 2700 X 1400 X 1400 mm
- FUEL TANK CAPACITY : 185 Liters
