Deskripsi

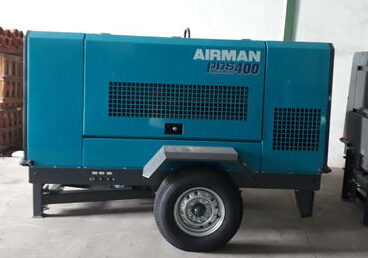

kompresor Portable Airman PDS 400 S kapasitas 400 CFM. Dilengkapi dengan engine Kubota Diesel dan Digital Human Interface membuat supervising parameter pengoperasian unit semakin mudah dilakukan.
KOMPRESOR SCREW AIRMAN PDS 400S
- DATA SPESIFIKASI KOMPRESOR ANGIN DAN SUKU CADANG
- Model: PDS 400S / SC-6B5 (Serries Portabel / Trailler Model)
- Type : Rotary Twin Screw, Single Stage, Oil Cooled
- Free Air Delivery : 11.3 m3/min ( 400 CFM )
- Working Pressure : 0.70 MPa ( 7.1 kgf/cm2 ) ( 101 psi )
- Unloader : Suction Port Closing in Connection With stepless speed regulator
- Lublication System : Forced Lubrication by compressed air
- Driving System : Direct Coupling with rubber
- Oil Cooling : Air cooled
- Air Cleaner : Dry Paper filter type
- DIESEL ENGINE
- Model : KUBOTA V3800DI-TIE2B-COHE1
- Type : Water cooled, 4 cycle, direct injection, Turbo charged, intercooled
- No. of Cylinders : 4
- Cyl. bore x stroke : 100mm x 120mm
- Total Displacement : 3,769 Liters
- Compression Ratio : 19.0 : 1
- Rated Output : 72.5 kW / 2600 min1
- Injection Pump : BOSCH PFR4M
- Governor : Electronic Governor
- Alternator : DC 12 V, 960W
- Starting Motor : DC 12V , 4.8 kW
- Battery : 130F51 x 1
- Air Cleaner : Dry Type
- Fuel Tank Capacity : 178 Liters
- Engine Oil Capacity ( Including oil Cooler ) : 13 Liters
- Coolant Capacity ( Including oil cooler ) : 15.6 Liters
- Compressors Oil Capacity ( including receiver tank & oil cooler ) : 40 liters
- OIL SEPARATOR – RECEIVER TANK
- Type : Vertical and Cylindrical welded vessel
- Shell dia : 350 mm
- Shell length ;774 mm
- Capacity : 0.0766 m3
- Max. Working Pressure 1.0 MPa
- Air Outlet Valve : 50A x 1, 20A x 2
- WEIGHT
- Dry Weight : Standard- 1.740 kg / After Cooler- 1.780 Kg
- Operating Weight : Standard- 1.940 / After Cooler- 1.980 Kg
